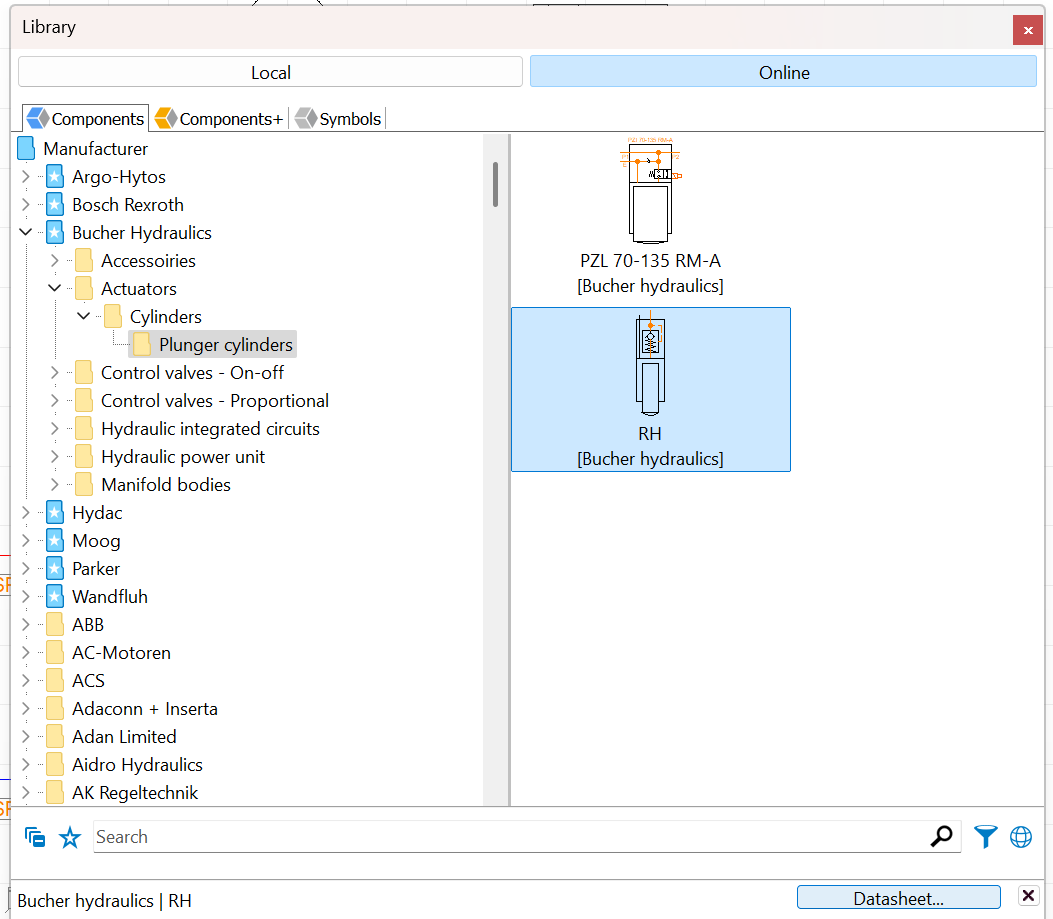

Library Interface

The library is located on the right side of the screen.

The local library is your personal and private library folder and is saved on your local or network hard drive.

The online library gives access to the HydroSym database of hydraulic symbols and components.

Both libraries are categorized in Symbols, Components, and Components+.

The left side of the library is the Content Window. Here, you'll find all symbols and components in the library. The right side shows the Preview Window, where the applicable components of a certain manufacturer or category show up as you go through the Content Window.

If you select a component, the small arrow in the bottom right corner opens the Data Summary. This gives you more detailed information about the component as well as some manufacturer specifications.

By pressing the Datasheet button in the bottom right corner, the manufacturer's data sheet, with all relevant information, opens up in a new tab in your web browser.

Lastly, at the bottom of the Library window, you'll find:

  • The Collapse button
  • The Favorites Button
  • The Search bar
  • and a shortcut to the library page on the Paro website.
